Road pavement - crumb rubber modified bitumen
Product · YUGA PMC

Waste-tyre crumb rubber modified binder (IS 15462 / IS 17079)

Request a DPR
Get the brochure
Book a feasibility call
Overview

Crumb Rubber Modified Bitumen (CRMB) is bitumen modified with crumb rubber recovered from waste tyres, improving elasticity, fatigue life and temperature susceptibility while consuming a waste material. Common grades include CRMB 50, CRMB 55 and CRMB 60.

CRMB delivers much of the performance of PMB, often at lower cost, and supports the circular economy by reusing scrap tyre rubber. It is widely used on highways and heavy-traffic urban roads.

Why this business

  • Cost-effective performance — strong results, usually cheaper than PMB
  • Uses waste tyres — consumes crumb rubber, an environmental plus
  • Better elasticity & life — improved fatigue and rut resistance
  • Temperature tolerant — performs across hot Indian summers
  • Standard grades — CRMB 50 / 55 / 60 to suit climate zones
Demand

  • National & state highways and heavy-traffic city roads
  • Hot-mix wearing and binder courses
  • Regions prioritising waste-tyre reuse / green procurement
  • Overlays and strengthening of existing pavements
Technical

StandardIS 15462 / IS 17079 (rubber-modified binders)
Common gradesCRMB 50, CRMB 55, CRMB 60
ModifierCrumb rubber from waste tyres (+ additives)
Recommended forHot climates, heavy traffic, cost-sensitive projects

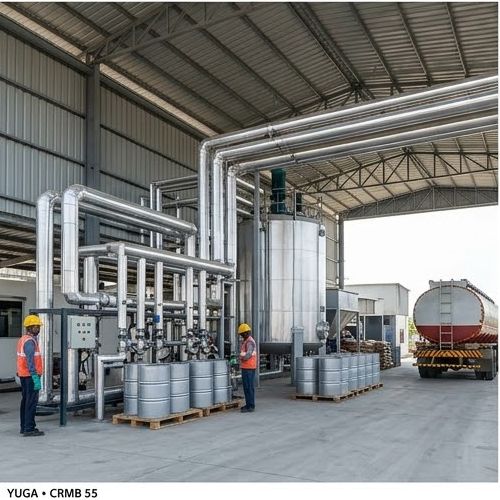

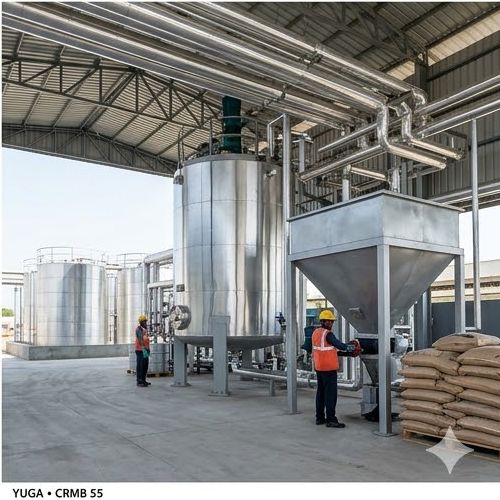

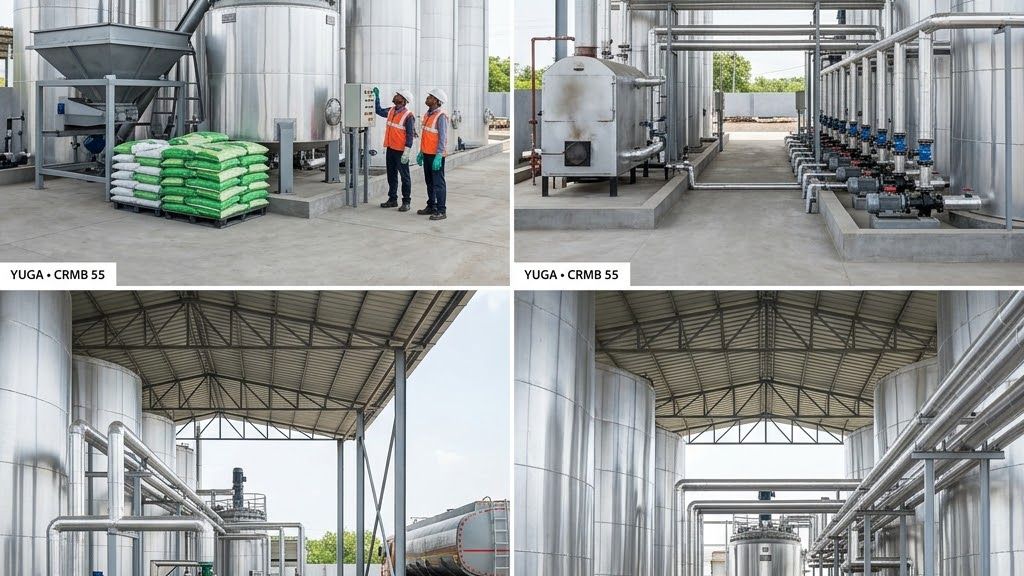

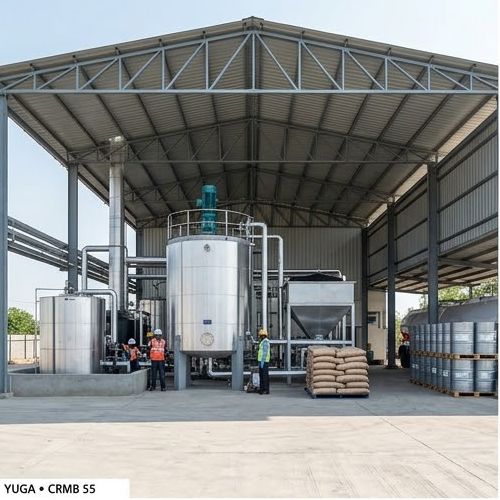

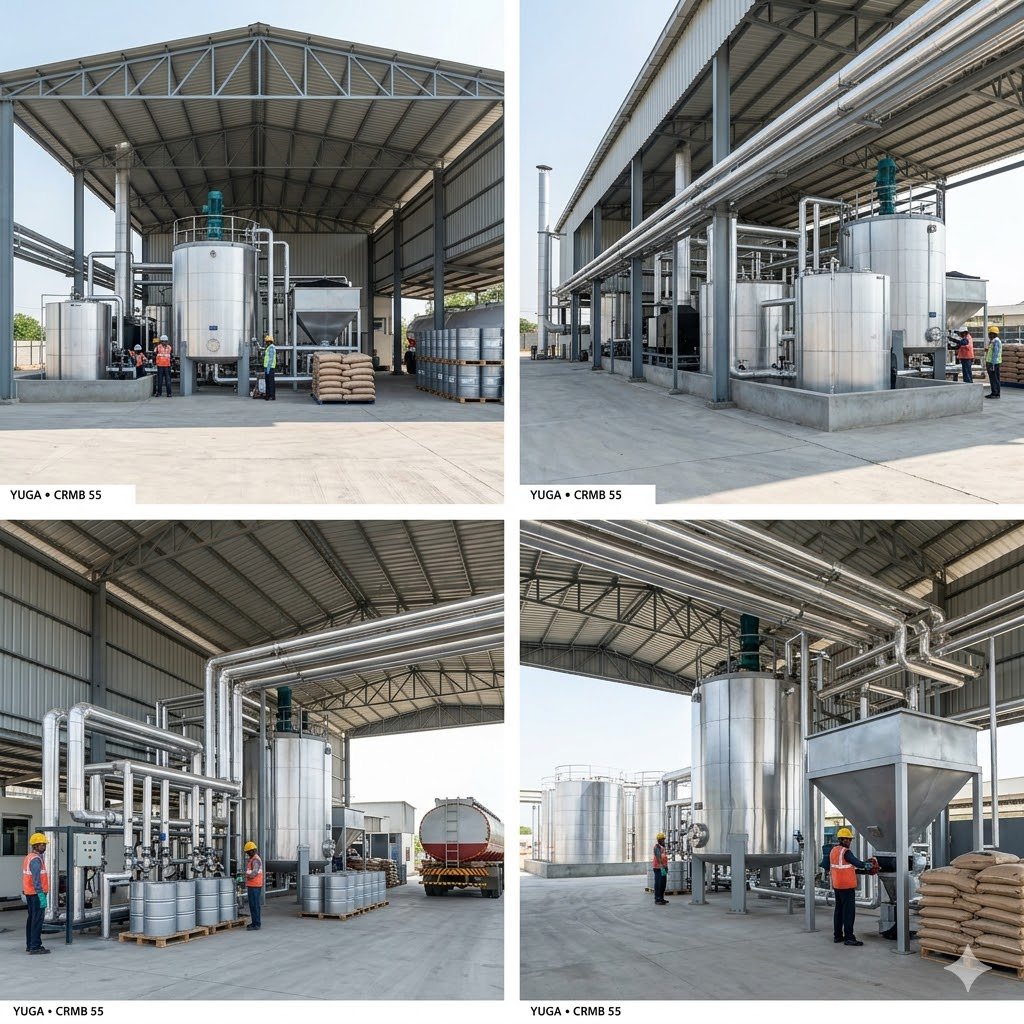

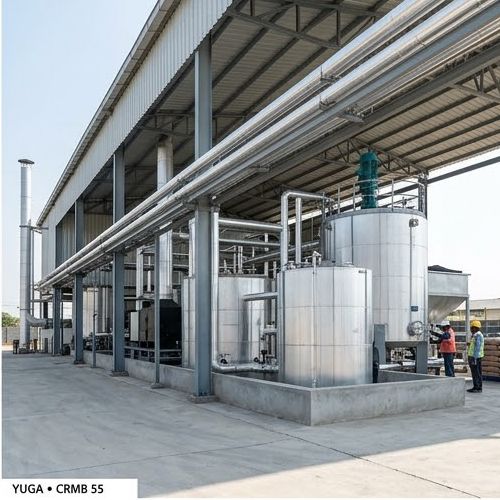

PlantCRMB blending unit with high-shear mill & digestion tank
Setup

Capacity to showSmall 3–5 TPH; Commercial 10–20 TPH; Large 30 TPH+
Area required10 TPH: 25,000–50,000 sq ft; with crumb-rubber yard & tank farm 1–2 acres
Approx. cost (without land)5 TPH ₹1.5–3 Cr; 10 TPH ₹3–6 Cr; 20–30 TPH ₹6–12 Cr (higher than simple PMB when crumb handling/digestion are robust)
UtilitiesPower, thermic-fluid heating, compressed air, forklift/loader, firefighting water, QC lab consumables
ApprovalsSPCB CTE/CTO, factory/fire, storage safety, IS 17079 / project-spec testing
Best-use statesWhere tyre/rubber recycling supply + road-contractor demand meet (Rajasthan, MP, Gujarat, TN, Telangana)

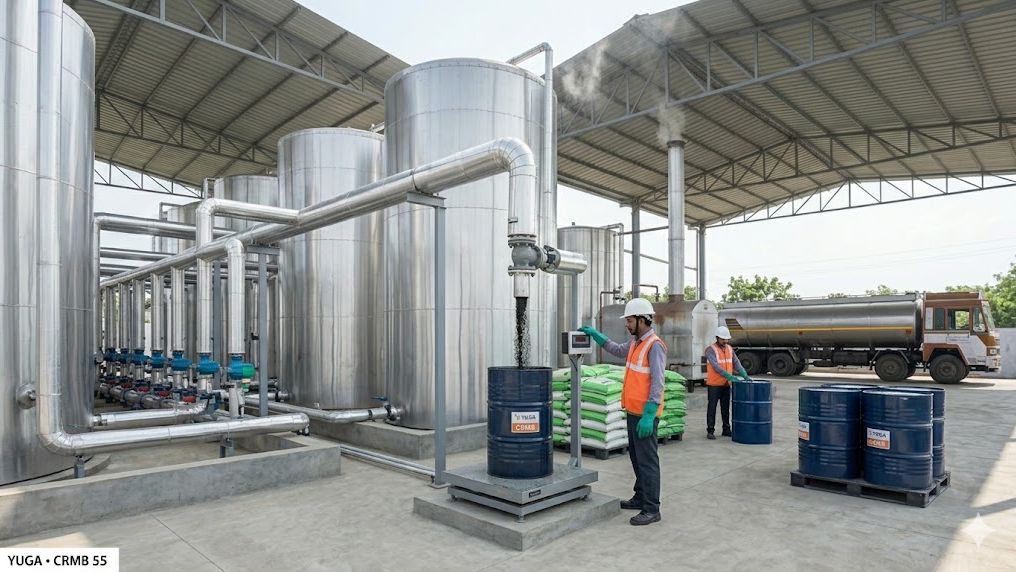

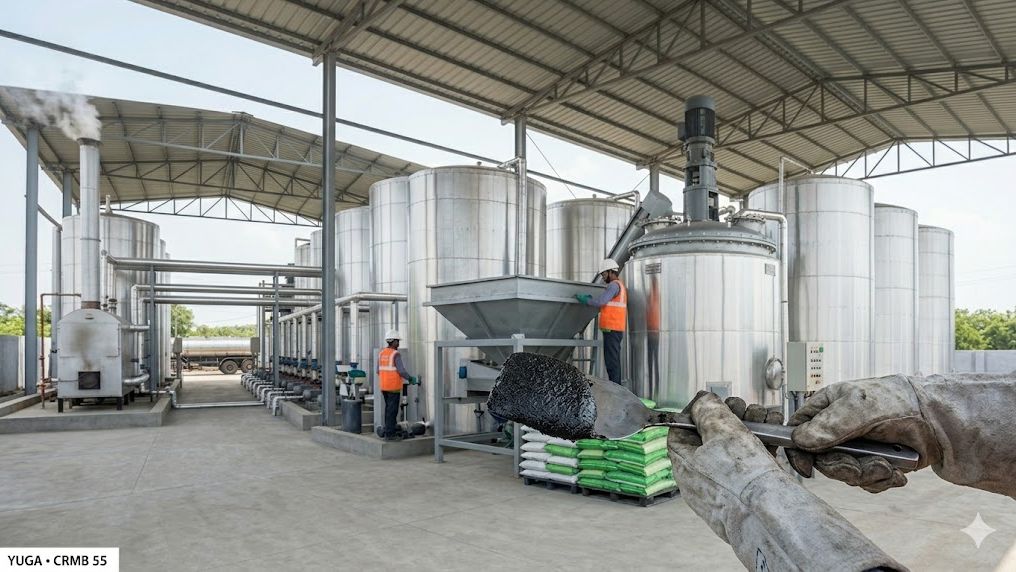

Bitumen receiving & storage tanksCrumb-rubber storage, weighing & feedingAdditive/stabilizer dosing systemHigh-shear mixer / colloid millDigestion/reaction tank with temperature controlCirculation pumps & heated pipelinesProduct storage tanks with agitation & heatingLoading & dispatch systemLab for CRMB grade testingFirefighting, spill containment & safety systems
Feedstock & Output

Per 1 tonne output

Input
VG bitumen
~85–90%
Crumb rubber
~8–15%
Stabiliser/additive
small dose
Output
CRMB (IS 17079)
1 tonne (≈ same mass as input)
Quality & Compliance

IS (BIS)
IS 15462 / IS 17079:2019 (RMB)
ASTM
ASTM D6114 (asphalt-rubber); D6373
MSDS / SDS
MSDS/SDS for hot bitumen & crumb rubber
Investment & Returns

Indicative for a CRMB blending plant (turnover-heavy, margin on conversion).

CRMB

Cost & ROI

Investment (CAPEX)
₹1.5–3 Cr
Output / year
8,000–15,000 MT CRMB/yr
Revenue / year
₹6–18 Cr
Profit / year
₹0.4–1.2 Cr
Land required
25,000–50,000 sq ft
Payback
2–3 yr

Indicative only — actual figures depend on capacity, location, raw-material price and utilisation. Contact us for an exact DPR.

Project investment (CAPEX)₹50 lakh – ₹2 crore (plant)
Working capitalHigh — bitumen + crumb rubber inputs
Approx. annual revenue (turnover)₹8 crore – ₹40 crore
Approx. gross profit (GP) margin8% – 15%
Approx. net profit / year₹40 lakh – ₹1.5 crore
Approx. payback period2 – 3 years
Where to build

Rajasthan, MP, Gujarat, Tamil Nadu, Telangana

Hot climates favour CRMB; waste-tyre availability; cost-sensitive highway works.

Questions

Bitumen modified with crumb rubber from waste tyres to improve road strength, elasticity and life.
